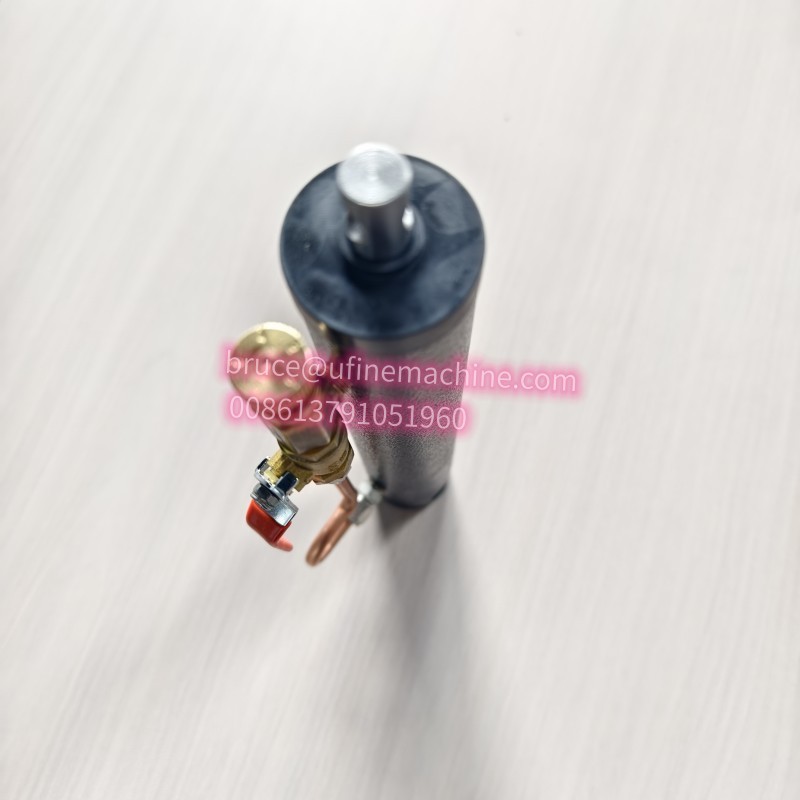

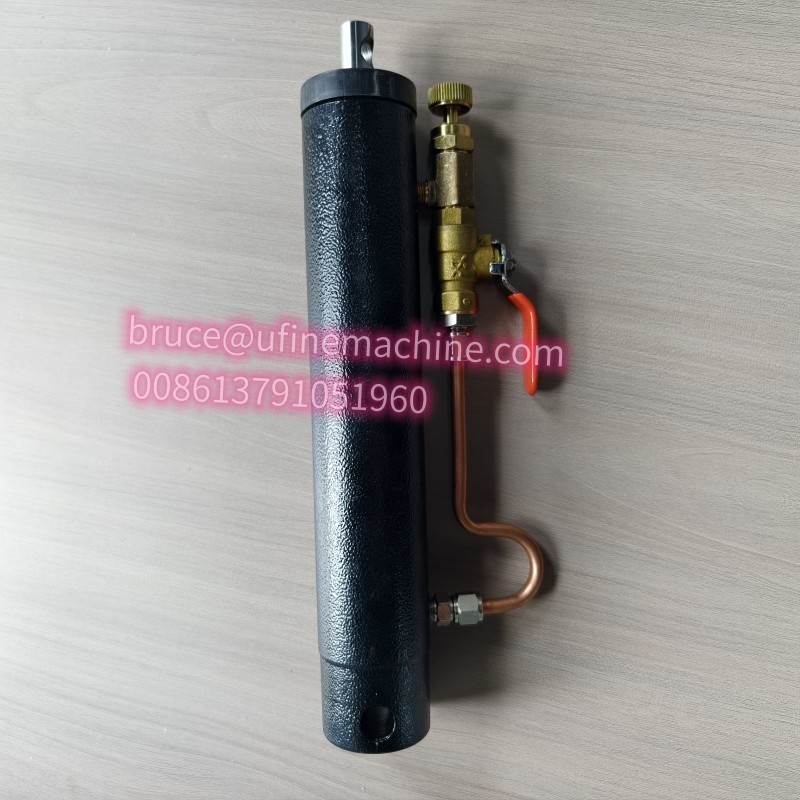

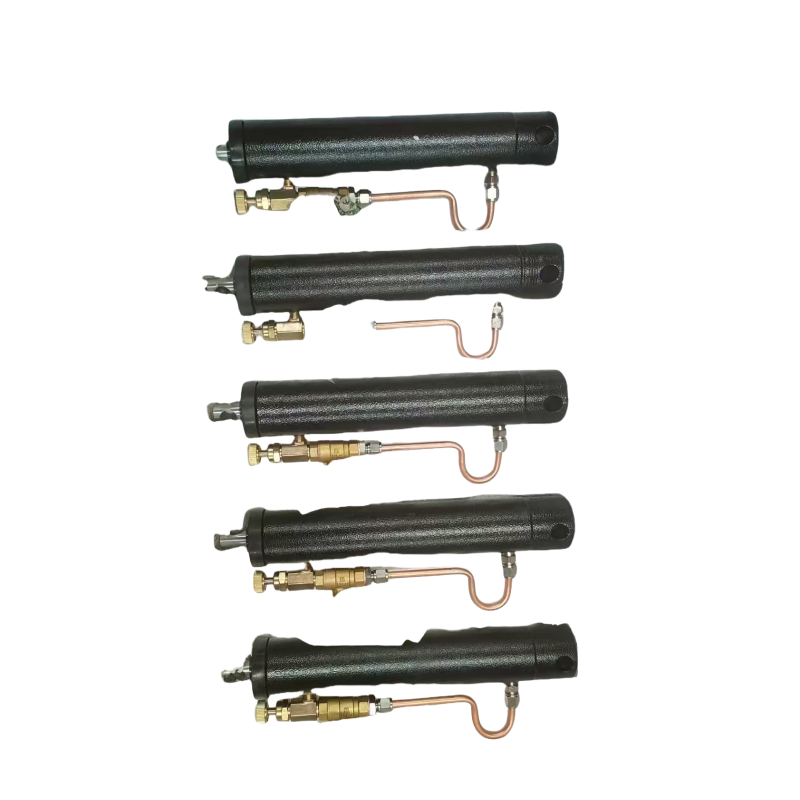

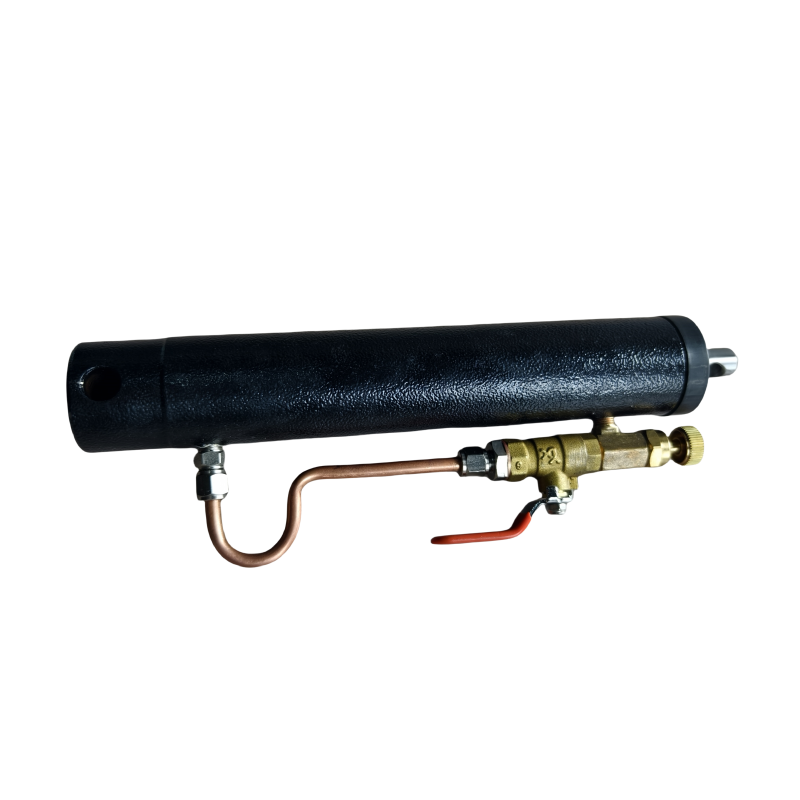

Band Saw Hydraulic Cylinder for Industrial Metal Cutting BS 108G
| Brand | UFINE |
| Blade Material | High Carbon Steel |
| Surface Recommendation | Metal Paint |
| Power Source | Hydraulic Power |
| Special Feature | Controls the drop speed of the blade |

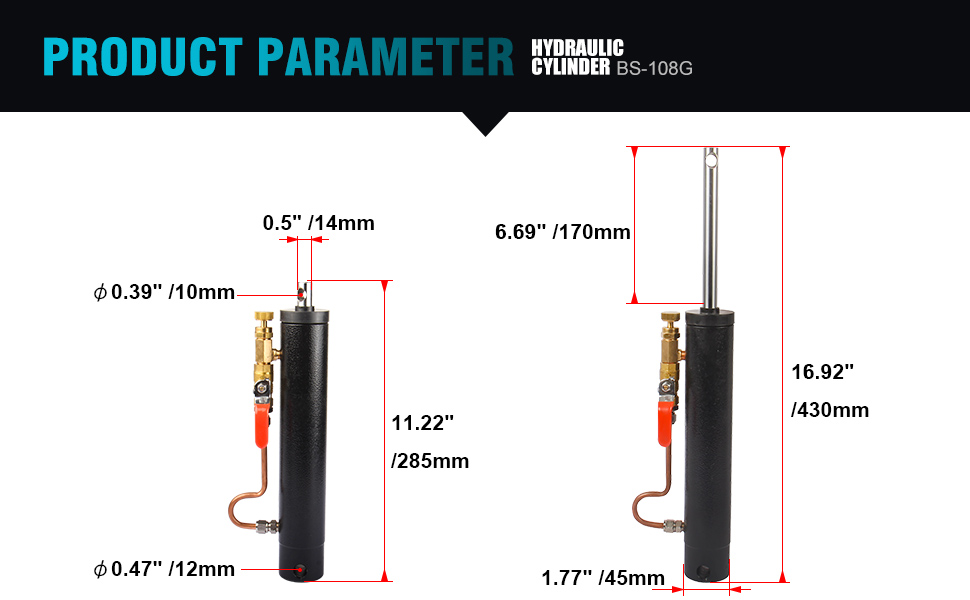

Hydraulic cylinder diameter: 1.77“/45mm
Total length of cylinder in retracted state: 11.2"/285mm
Total length of cylinder in extended state: 16.9"/430mm
Hydraulic rod length after extension: 6.7"/170mm
Piston rod diameter: 0.5"/φ14mm
Mounting hole diameter: φ0.47"/12mm at the cylinder body, φ0.39"/10mm at the piston rod
Stroke: 5.7"/145mm
