Industrial Metal Cutting Band Saw Hydraulic Cylinde for BS-106G

Industrial Metal Cutting Band Saw with Hydraulic Cylinder, Professional Grade (BS-106G Hydraulic Cylinder)

Brand	UFINE
Blade Material	High Carbon Steel
Surface Recommendation	Metal Paint
Power Source	Hydraulic Power
Special Feature	Controls the drop speed of the blade

About this item

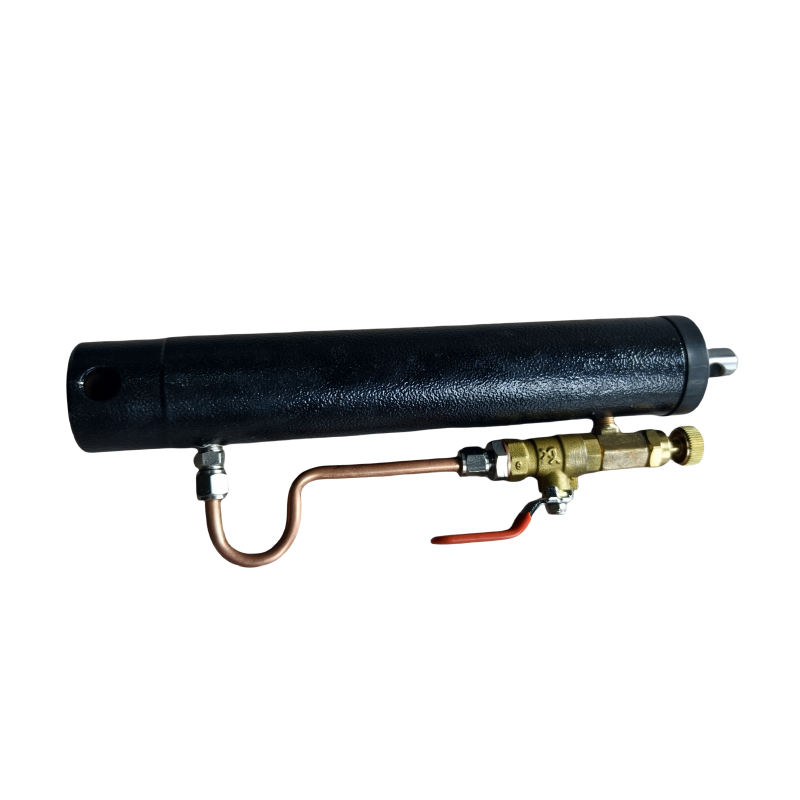

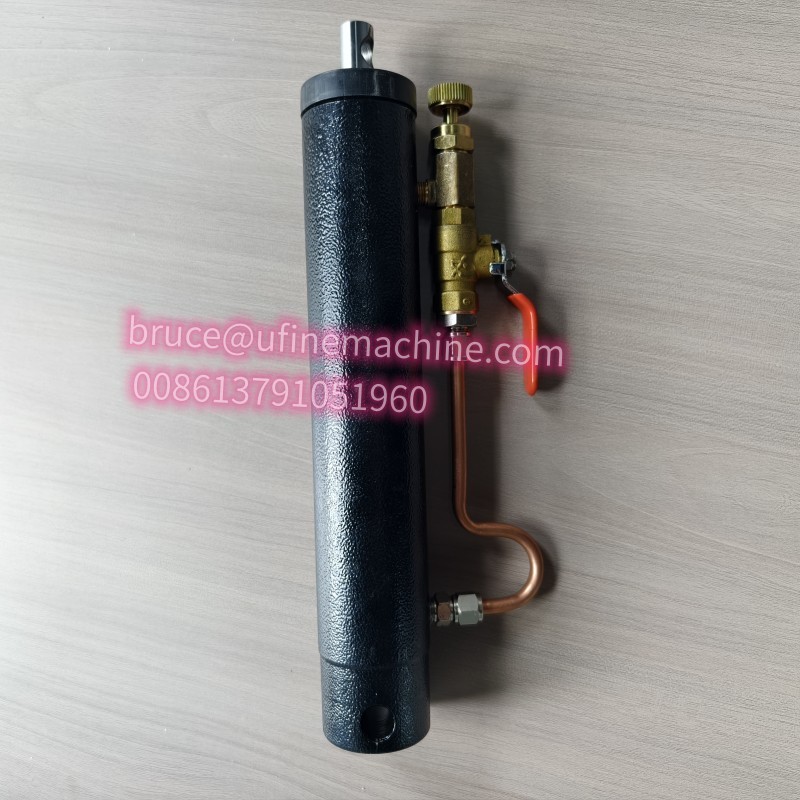

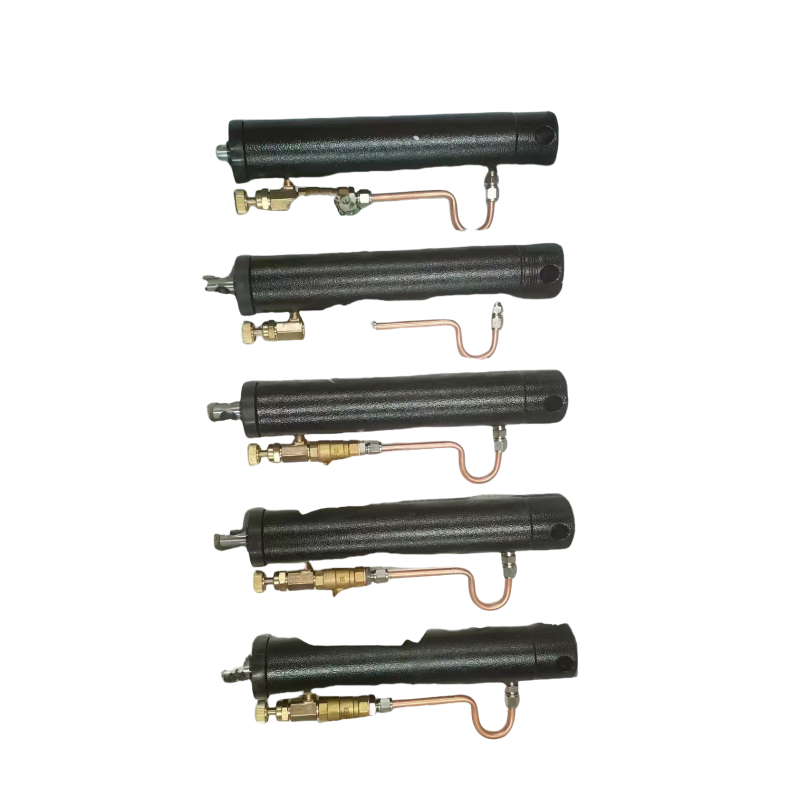

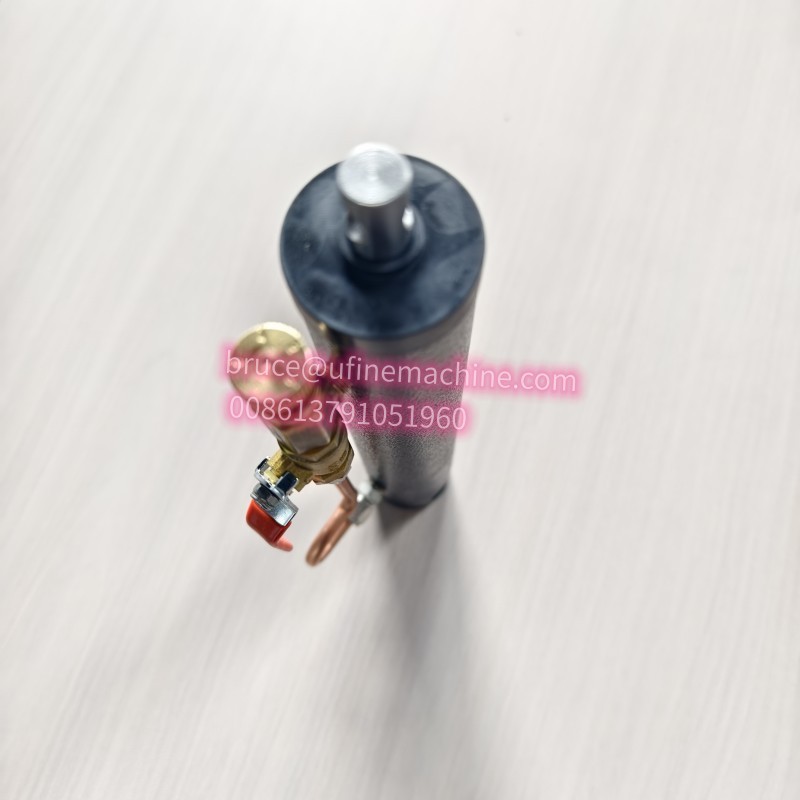

Band SawHydraulic cylinder diameter: 3.6"x2"/92x52mm(Square)

Total length of cylinder in retracted state: 15.3"/390mm

Total length of cylinder in extended state: 19.8"/505mm

Hydraulic rod length after extension: 10"/255mm

Piston rod diameter: 0.6 "/16mm

Mounting hole diameter: M10X1.25 thread at piston shaft end

Stroke: 4.5"/115mm

N.W./G.W.: 3.8/4.5 kg

8f04de9d6c72e58cee6a6a5a0743e678_e9387a4a-b977-49a5-86ea-5477ffb0a951.__CR0,0,970,600_PT0_SX970_V1___.jpg
