About this item（Industrial Metal Cutting Band Saw with Hydraulic Cylinder BS-126G R ）

SKU 188010-62

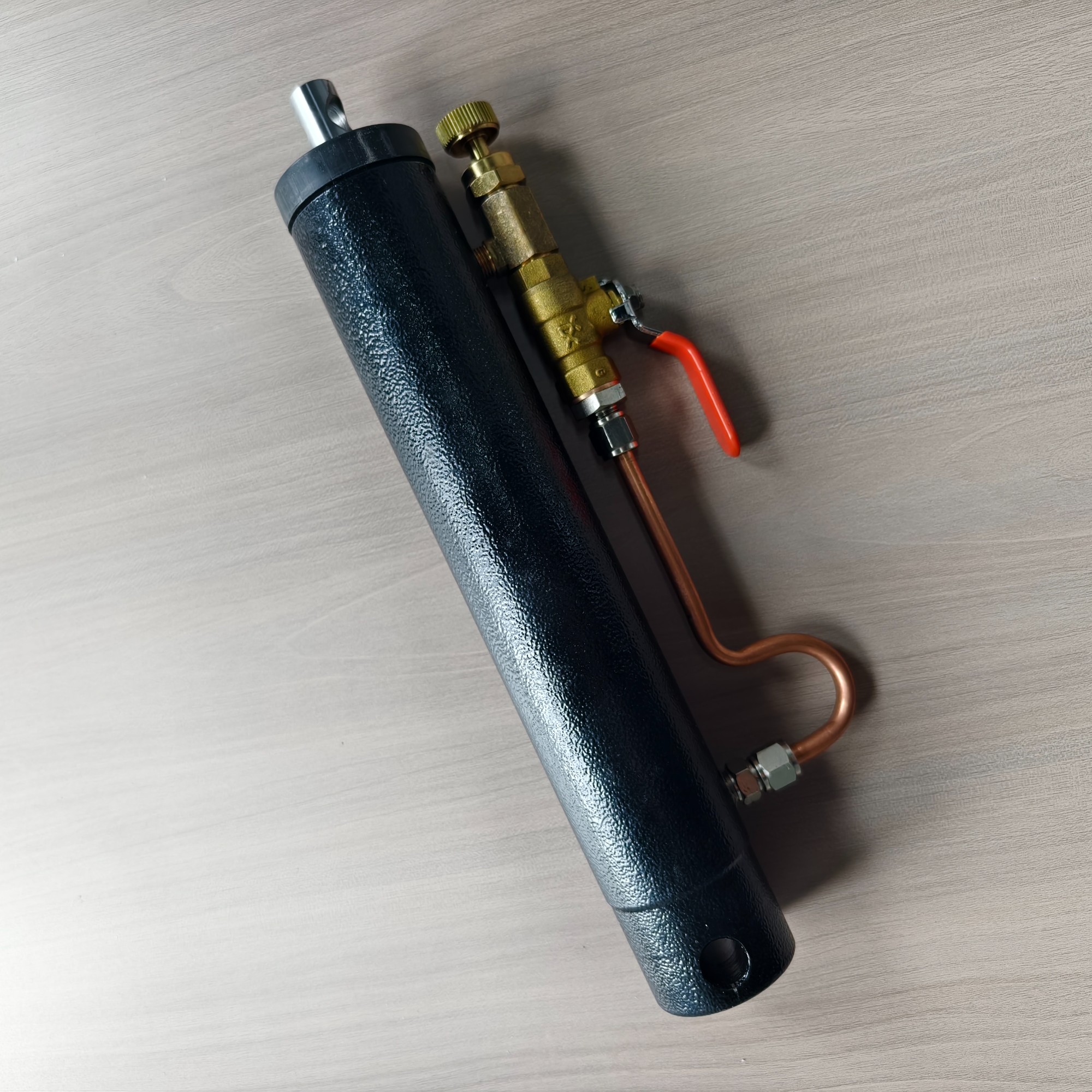

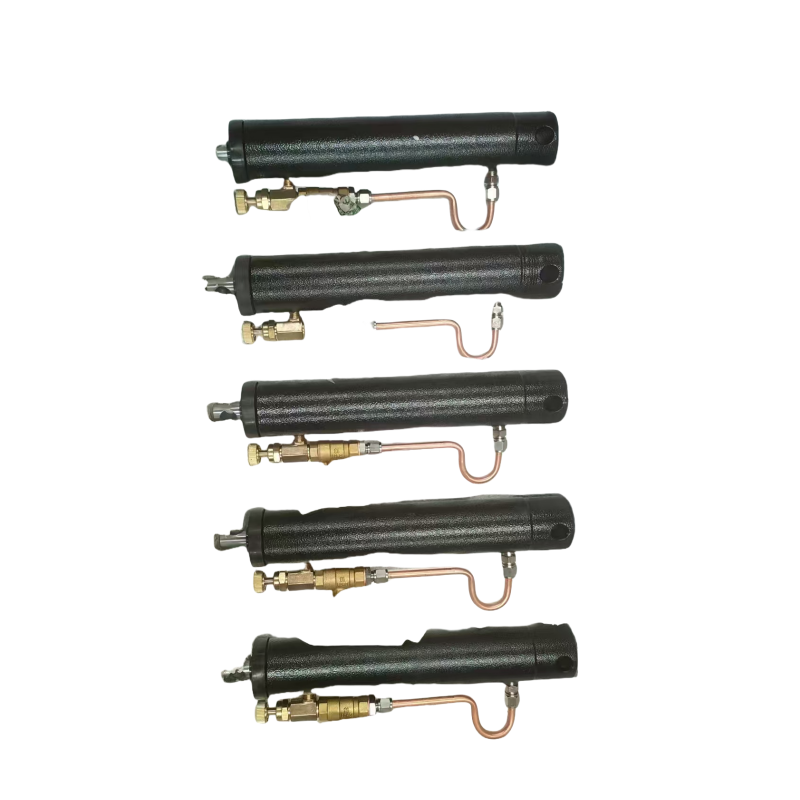

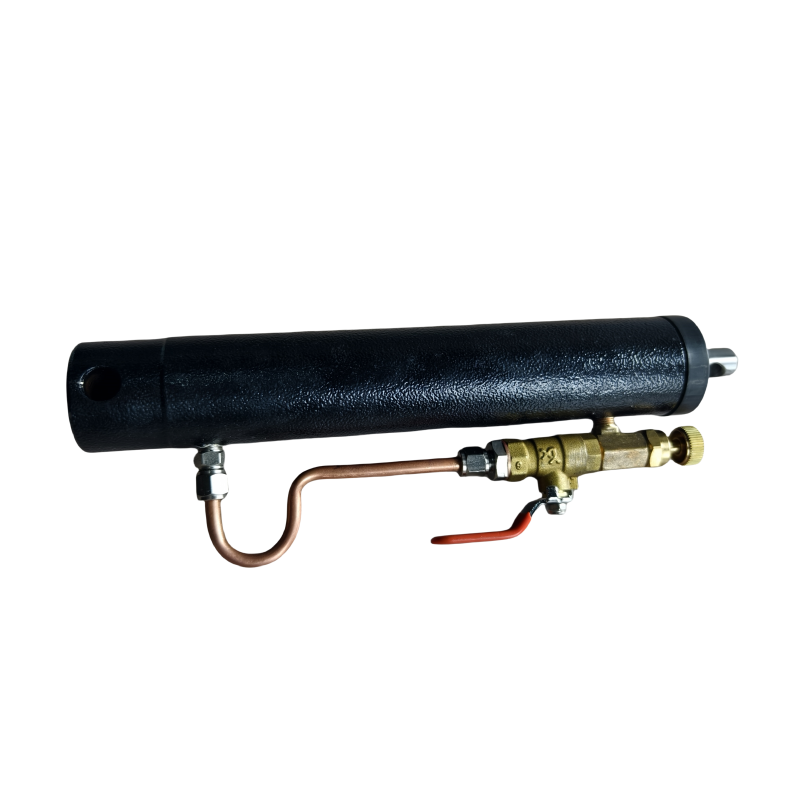

Model Hydraulic cylinder for BS-912B

Hydraulic cylinder diameter 1.77"/45mm

Total length of cylinder in retracted state: 12.2"/310mm

Total length of cylinder in extended state: 17.9"/455mm

Hydraulic rod length after extension: 7.6"/195mm

Piston rod diameter 0.5"/φ14mm

Mounting hole diameter φ0.47"/12mm at cylinder body, φ0.39"/10mm at piston rod

Stroke 5.7"/145mm

N.W./G.W. 4.9/6.6 lbs
