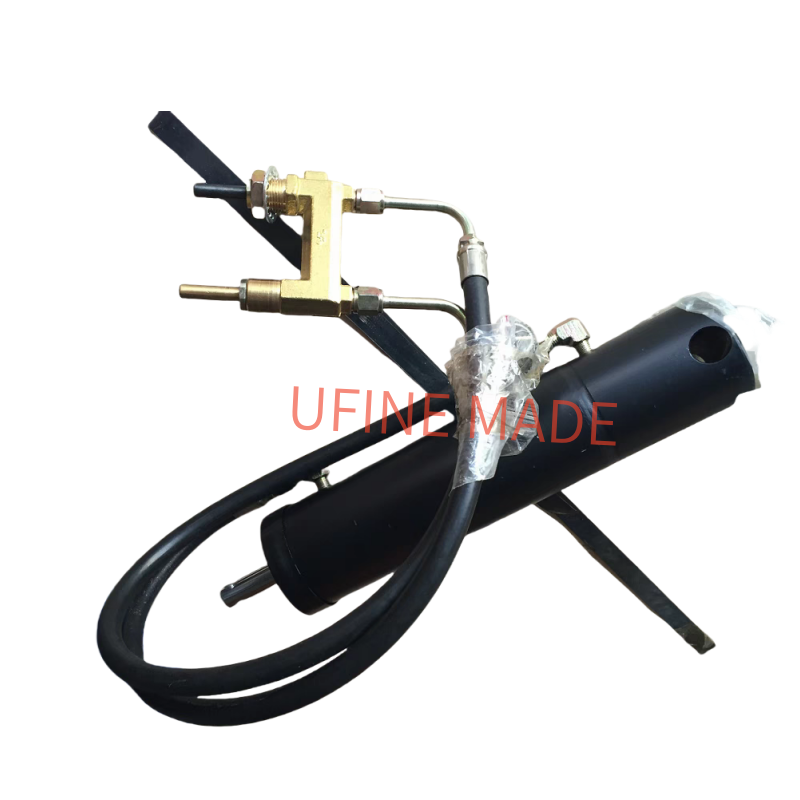

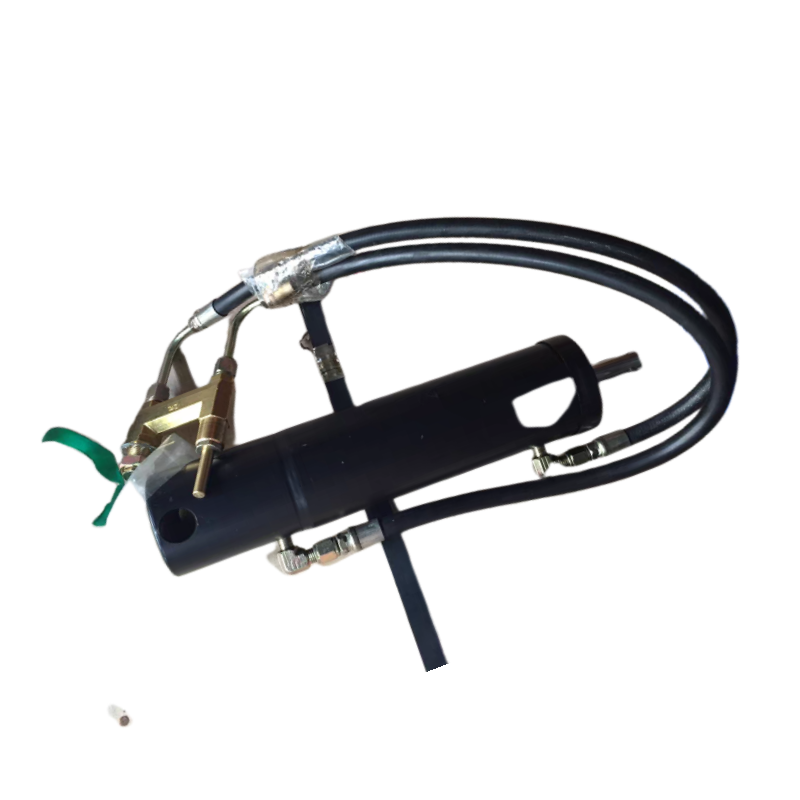

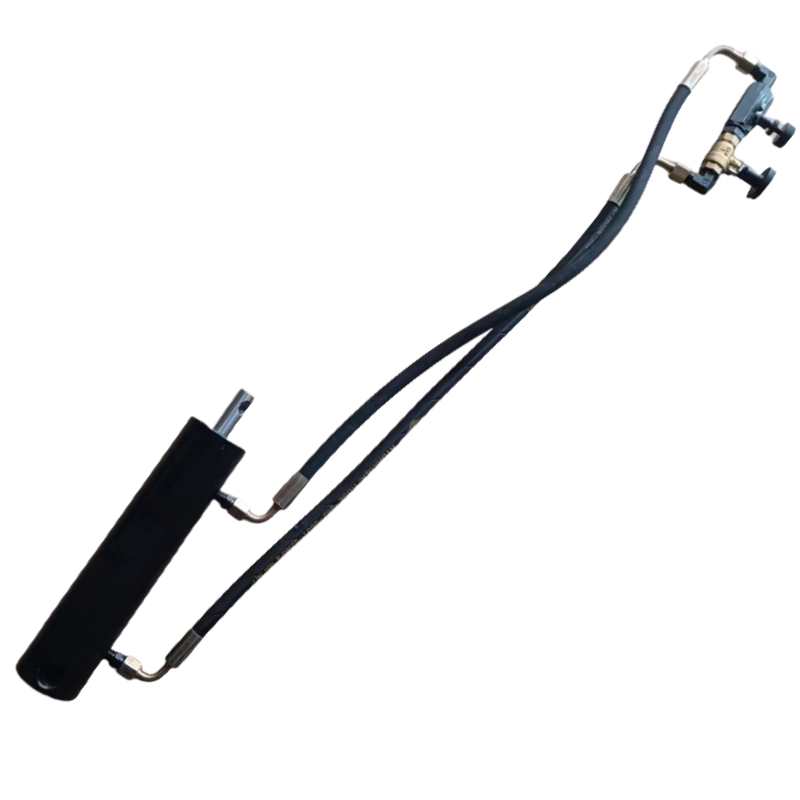

About this item（Band Saw  Hydraulic Cylinder for Industrial Metal Cutting  BS-1018B）

Specifications

SKU 188116-178

Model Hydraulic cylinder BS-1018R

Hydraulic cylinder diameter 2.36"/60mm

Total length of cylinder in retracted state: 11.8"/300mm

Total length of cylinder in extended state: 17.32"/440mm

Hydraulic rod length after extension: 6.8"/175mm

Piston rod diameter 0.6 "/φ16mm

Mounting hole diameter φ0.78"/20mm at cylinder body, φ0.47"/12mm at piston rod

Stroke 5.5"/140mm

N.W./G.W. 9.5/11 lbs
